Type: Solar Panel
Power Output: 610 Watts
Technology: N-Type Mono PERC
Design: Bi-Facial
Efficiency: Up to 23.0%
Temperature Coefficient (Pmax): -0.29% / °C
Operating Temperature: -40°C to +85°C
Weight: 32.3 kg
Dimensions: 2278 × 1134 × 30 mm
Experience next-generation solar technology with the Canadian Solar 610W Bi-Facial N-Type Solar Panel — a high-performance solution built for residential, commercial, and industrial applications. Canadian Solar is a globally trusted name in renewable energy, known for manufacturing reliable and efficient solar panels.

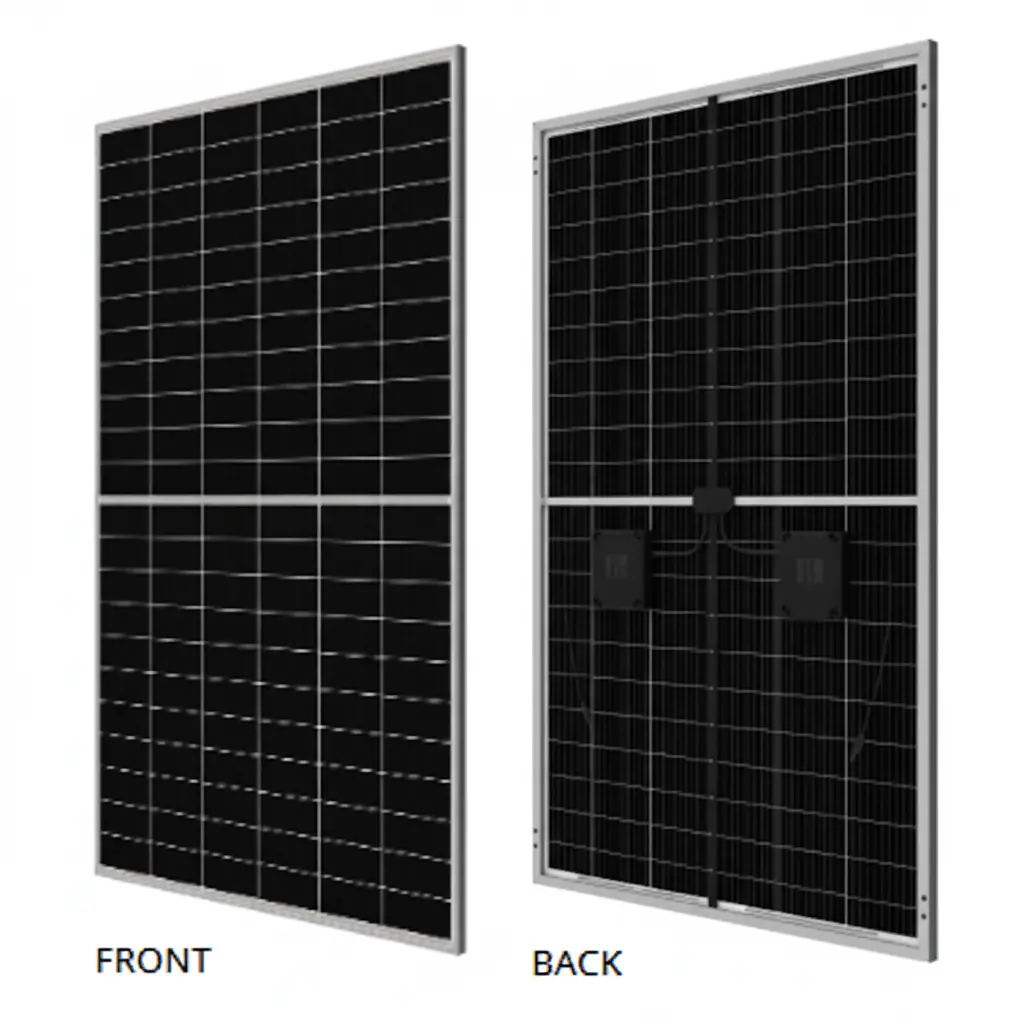

This advanced Mono PERC N-Type panel features a bi-facial glass-glass design, capturing sunlight on both sides to increase overall power generation. Its TOPCon cell technology ensures high efficiency, even in low-light conditions, making it ideal for the diverse climate of Pakistan.
Built to last, the panel supports heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring durability and stability in extreme conditions. With a lower temperature coefficient (-0.29%/°C), it maintains exceptional performance even under high temperatures.
If you’re looking for high-quality solar panels in Pakistan, the Canadian Solar 610W Bi-Facial model offers long-term reliability, enhanced energy yield, and a smart choice for sustainable power generation.
| Model | Max Power (Pmax) | Voltage (Vmp) | Current (Imp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) | Efficiency |
|---|---|---|---|---|---|---|
| CS6W-595TB-AG | 595 W | 43.7 V | 13.62 A | 52.8 V | 14.12 A | 23.0% |
| Model | Max Power (Pmax) | Voltage (Vmp) | Current (Imp) | Open Circuit Voltage (Voc) | Short Circuit Current (Isc) |
|---|---|---|---|---|---|
| CS6W-595TB-AG | 450 W | 41.3 V | 10.89 A | 50.0 V | 11.39 A |
| Specification | Details |
|---|---|
| Cell Type | N-Type TOPCon Cells |
| Cell Arrangement | 144 Cells [2x(12×6)] |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 32.3 kg |
| Front Glass | 2.0 mm Heat-Strengthened Glass with Anti-Reflective Coating |
| Back Glass | 2.0 mm Heat-Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| J-Box | IP68, 3 Bypass Diodes |
| Cable | 4.0 mm² (IEC), 12 AWG (UL) |
| Connector | MC4-EVO2 / T6 |
| Load Capacity | Snow: 5400 Pa / Wind: 2400 Pa |
| Specification | Data |
|---|---|
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.05% / °C |
| Nominal Operating Temperature | 41 ± 3°C |
