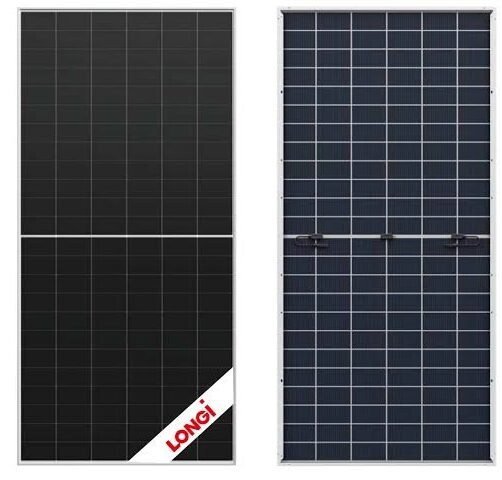

LONGi Hi MO X10 645W Bifacial Panel – High Efficiency Mono Perc Module

  • Electrical Data (at STC / Standard Test Conditions)
    • Maximum Power (Pmax): 645 W
    • Open Circuit Voltage (Voc): 54.12 V
    • Short Circuit Current (Isc): 15.06 A
    • Voltage at Maximum Power (Vmp): 44.77 V
    • Current at Maximum Power (Imp): 14.41 A
    • Module Efficiency: Up to 24.6%
    • Power Output Tolerance: 0 ~ +3%
      Technical & Mechanical Data
      • Cell Type: N-Type Monocrystalline Half-Cut (HPBC 2.0)
      • Cell Orientation: 132 cells (6 × 22 layout)
      • Dimensions: 2382 × 1134 × 30 mm
      • Weight: Approx. 33.5 kg
      • Glass: Dual glass, 2.0 mm + 2.0 mm semi-tempered anti-reflective coated glass
      • Junction Box: IP68 rated with 3 diodes
      • Output Cable: 4 mm² cross-section, customizable lengths (+400 / -200 mm or ±1400 mm)
      • Frame: Anodized aluminum alloy

The LONGi Hi MO X10 645W Bifacial Panel features high-efficiency N-Type TOPCon cell technology, providing superior power output and reduced energy loss over time. Its dual-glass bifacial design enhances durability and enables additional energy capture from reflected sunlight, maximizing overall yield. Ideal for large-scale commercial, industrial, and utility projects in Pakistan, it ensures reliable performance, long-term stability, and high energy generation.

The LONGi Hi MO X10 645W Bifacial Panel is part of the latest generation of high-performance solar modules, featuring N-Type HPBC 2.0 cell technology and a dual-glass bifacial design. It delivers exceptional power output, reduced degradation, and enhanced durability, making it ideal for utility-scale, commercial, and high-end residential solar installations.

Thanks to its bifacial structure, the panel generates electricity from both the front and rear sides, offering up to 30% additional energy gain depending on ground reflectivity. This makes it an excellent choice for solar farms, industrial rooftops, and large-scale commercial projects across Pakistan.

The Hi-MO X10 645W provides excellent PID resistance, low LID, and superior low-light performance. With a 30-year linear power warranty, it ensures reliable long-term energy generation and a strong return on investment.

Electrical Data (at STC / Standard Test Conditions)
  • Maximum Power (Pmax): 645 W
  • Open Circuit Voltage (Voc): 54.12 V
  • Short Circuit Current (Isc): 15.06 A
  • Voltage at Maximum Power (Vmp): 44.77 V
  • Current at Maximum Power (Imp): 14.41 A
  • Module Efficiency: Up to 24.6%
  • Power Output Tolerance: 0 ~ +3%
Technical & Mechanical Data
  • Cell Type: N-Type Monocrystalline Half-Cut (HPBC 2.0)
  • Cell Orientation: 132 cells (6 × 22 layout)
  • Dimensions: 2382 × 1134 × 30 mm
  • Weight: Approx. 33.5 kg
  • Glass: Dual glass, 2.0 mm + 2.0 mm semi-tempered anti-reflective coated glass
  • Junction Box: IP68 rated with 3 diodes
  • Output Cable: 4 mm² cross-section, customizable lengths (+400 / -200 mm or ±1400 mm)
  • Frame: Anodized aluminum alloy
Operating & Temperature Parameters
  • Operating Temperature: -40°C ~ +85°C
  • Maximum System Voltage: DC 1500V (IEC/UL)
  • Maximum Series Fuse Rating: 25A / 30A (depending on precise sub-model specs)
  • Temperature Coefficient of Pmax: -0.26% / °C
  • Temperature Coefficient of Voc: -0.20% / °C
  • Temperature Coefficient of Isc: +0.05% / °C
  • Mechanical Load Capacity: Front side 5400 Pa, Rear side 2400 Pa
